MAIN APPLICATIONS
- General Surgery
- Endoscopy
- Obstetrics
- Gastroenterology
- Room/Ward
- Home-Care
- Veterinary

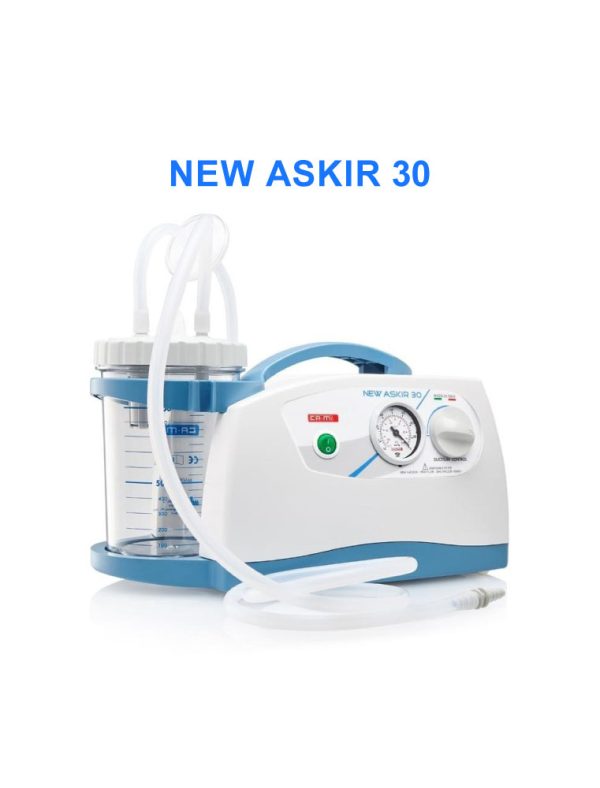

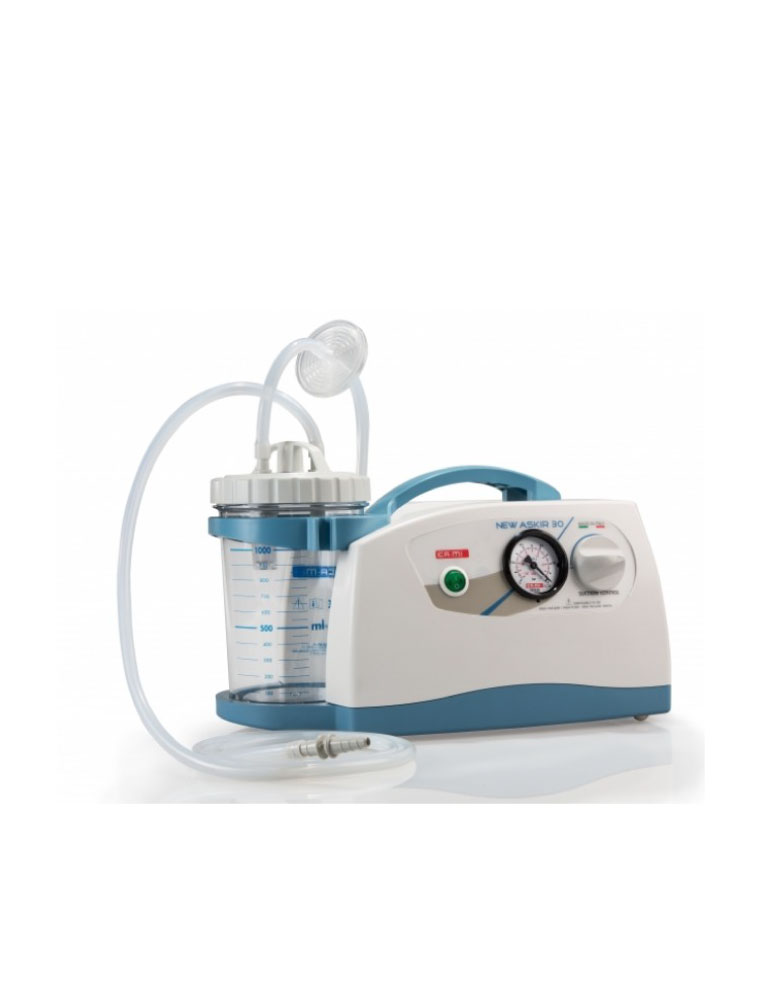

NEW ASKIR 30 is a desk-type electric suction unit suitable for nasal, oral and endotracheal aspiration of bodily fluids (mucus or catarrh) from adults and children. Indicated for tracheotomized patients, minor surgical applications and post-operative therapy in home-care. Main unit equipped with vacuum-meter (mmHg and kPa) and vacuum regulator.
Complies with EN 60601-1-11 “for use in the home healthcare environment” and carries IP21 degree of protection.
INCLUDED ACCESSORIES
| Liquid Collection Jar with overflow valve system (different options, see below) |
| 6×10 Silicone Tubes (autoclavable) + Conical Connector ø 8-9-10mm |
| Antibacterial & Hydrophobic Filter (single-patient) |
| CH20 Canula |
| Power Cord with Schuko plug |
FEATURES
| Motor |
Oiless and maintenance-free piston pump |
| Power Feeding |
230V-50 Hz |
| ISO 10079-1Classification |
HIGH VACUUM / HIGH FLOW |
| Max Vacuum (adjustable) |
-0.80 Bar -80kPa – 600 mmHg |
| Noise level |
60,5 dB |
| Max free air flow rate |
40 l/min |
| Power consumption |
110 VA |
| Fuse |
1 xF1,6 A 250 V |
| Duty cycle |
Non-stop operation |
| IP Protection Code |
IP21 |
| Weight |
3,6 Kg |
| Size |
35x21x18 cm |
| Warranty |
2 years |
| Place of Manufacturing |
ITALY |
![](\"https://ca-mi.eu/img/void_circle_15_list.png\")
RE 310100/02
