MAIN APPLICATIONS
- ENT
- Home care
- Room/Ward
- Tracheostomy

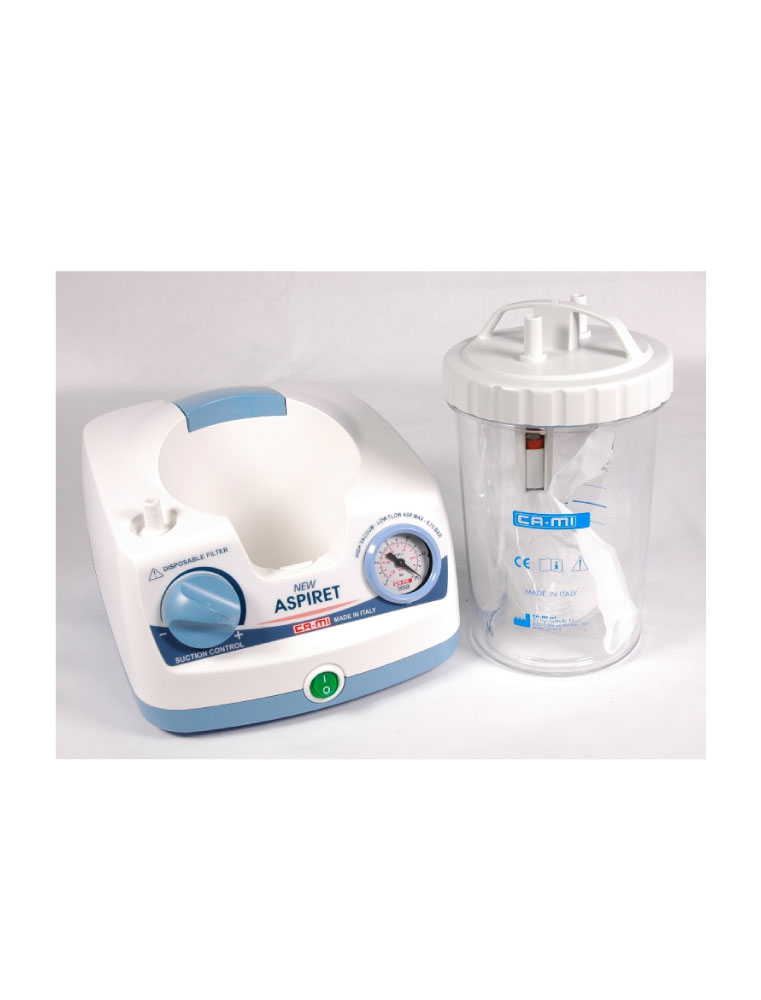

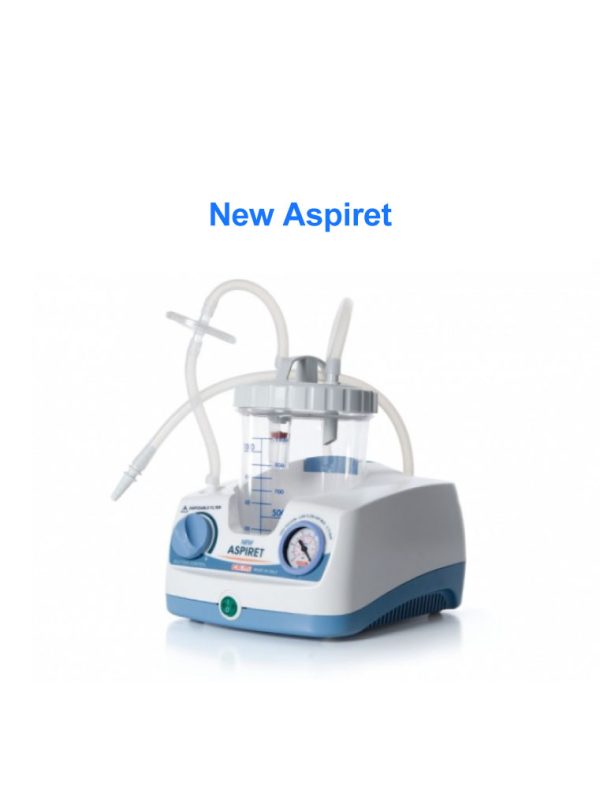

NEW ASPIRET is a desk-type electric suction unit suitable for nasal. oral and endotracheal aspiration of bodily fluids (mucus or catarrh) from adults and children. Indicated for tracheotomized patients, minor surgical applications and post-operative therapy in home-care. Main unit equipped with vacuum-meter (mmHg and kPa) and vacuum regulator. Complies with EN 60601-1-11 “for use in the home healthcare environment” and carries IP21 degree of protection.
AVAILABLE CONFIGURATIONS
![](\"https://ca-mi.eu/img/void_circle_15_list.png\") RE 310001 |
1 jar 1000 ml |
| RE 310001/01 |
1 jar 2000 ml |
| with FLOVAC® Disposable Liners |
| RE 310002 |
1 jar 1000 ml |
| RE 310002/01 |
1 jar 2000 ml |
INCLUDED ACCESSORIES
| Liquid Collection Jar with overflow valve system (different options, see below) |
| 6×10 Silicone Tubes (autoclavable) + Conical Connector ø 8-9-10mm |
| Antibacterial & Hydrophobic Filter (single-patient) |
| CH20 Canula |
| Power Cord with Schuko plug |
FEATURES
| Motor | Oiless and maintenance-free piston pump |
| Power Feeding | 230V-50Hz |
| ISO 10079-1Classification | HIGH VACUUM / LOW FLOW |
| Max free air flow rate | 15 l/min |
| Max Vacuum (adjustable) | -0.75bar -75kPa -563mmHg |
| Noise Level | 59,6 dB |
| Power consumption | 184 VA |
| Fuse | 1 x F1,6 A 250 V |
| Duty cycle | Non-stop operation |
| Weight | 2,2 Kg |
| Size | 25x19x16 cm |
| IP classification | IP21 |
| Warranty | 2 years |
| Place of Manufacturing | ITALY |
